Osage Type II Travois Ambulance


The Travois Type II ambulance is available on the Ford Transit van chassis. The Transit has been proven to be a reliable ambulance for EMS services throughout the country. They offer affordable, fuel-efficient vehicles in three (3) different engine types (Ecoboost gas, regular gas, diesel).  Furthermore, Osage is building on the T350 High-Roof van, as well as the T250 & T350 Mid-Roof Transit.  And new to 2020, Ford will be offering the Transit with AWD (all-wheel-drive) option.

As of recently, Type II ambulances were mostly operated for transfer or inter-facility transports.  While that still can be true, Osage is building the premier custom Type II’s in the US marketplace that are being utilized for all ALS/BLS  calls and any type of emergency situation.

Please contact your local dealer for more information on the most quality, custom Type II in the country.

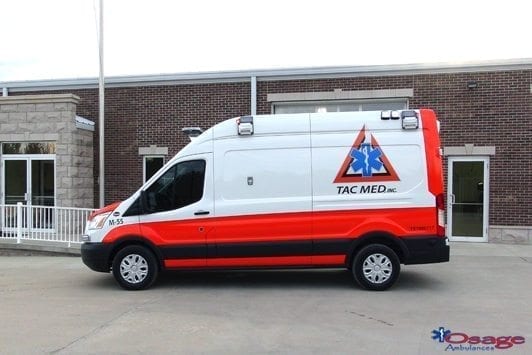

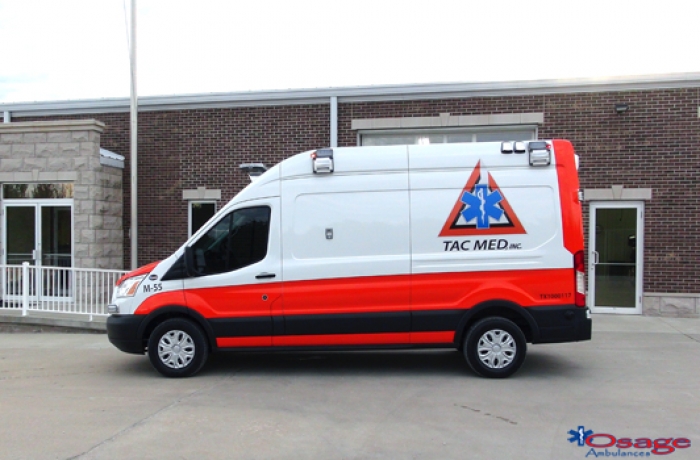

  • 10.TAC Med Phoenix Blog 1

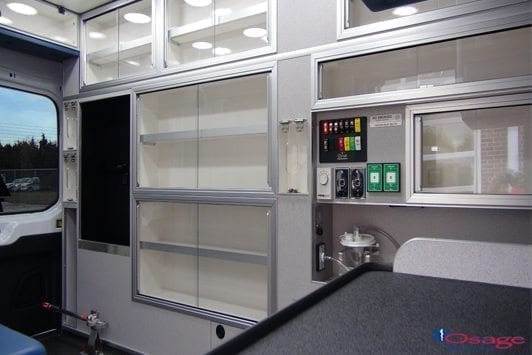

  • 10.TAC Med Phoenix Blog 4

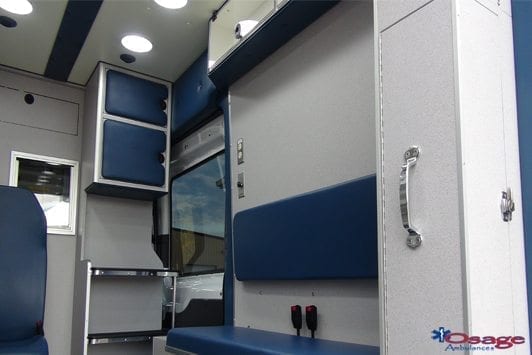

  • 10.TAC Med Phoenix Blog 5

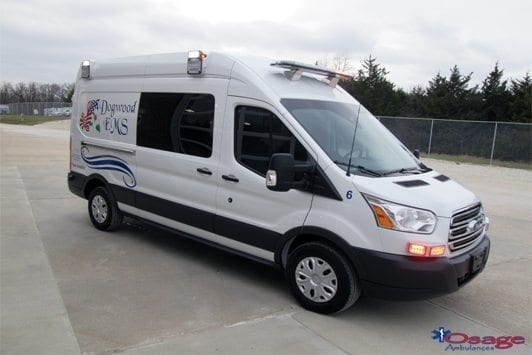

  • 10.Dogwood Phoenix Blog 1

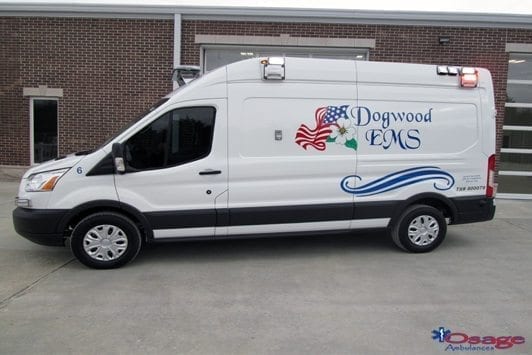

  • 10.Dogwood Phoenix Blog 2

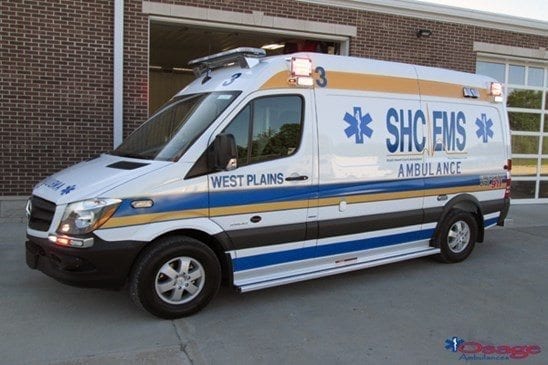

  • 10.S Howell ESS Blog 2

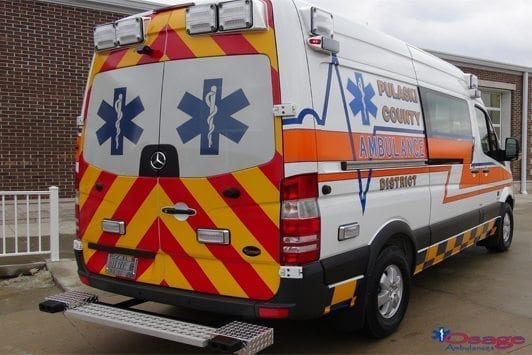

  • 10.Pulaski ESS Blog 1

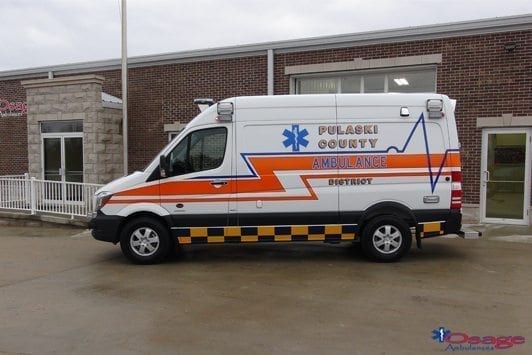

  • 10.Pulaski ESS Blog 2

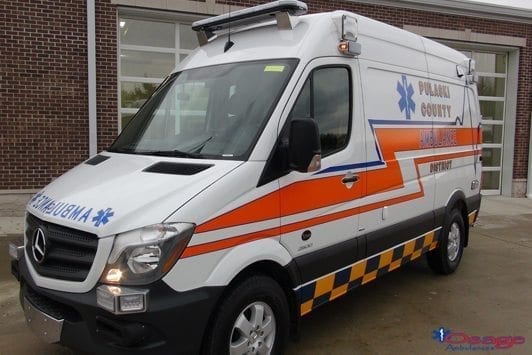

  • 10.Pulaski ESS Blog 3

Osage Type II Travois Specs

 Ford TransitMercedes Sprinter
Wheel Base Van148"144"
GVWR9,500 lbs8,550 lbs
Engine3.5L EcoBoost V6/310HP
@5,500RPM 400 lb.-ft
Torque @ 2,250 RPM
3.0 Liter V6 Diesel
Transmission6-Speed Automatic
OD w/Select Shift
5-Speed Automatic
Interior Head Room74 3/4"73 3/4"
Standard DrawingsDownloadDownload
Standard FeaturesDownloadDownload

Travois Type II Features and Benefits


Osage offers the Type II “Travois” on the Ford “Transit” and the Mercedes “Sprinter”.  The “Transit” is available in 3 different engine options, two gas and a diesel, while the “Sprinter” is available in the diesel only.  Osage is a “Custom” builder and is able to build the “Transit” designed specifically for your department.

  • Warning Lights all Whelen LED
  • Whelen “Justice” Ten LED Lightbar
  • Curb Side 6″ Impact Protection Beam
  • Automotive Undercoating Protection
  • All Interior Cabinets 3/4″ Solid Core Cabinet Grade Plywood
  • R-14.5 Reflectix Insulation
  • HVAC Unit Floor Mounted w/Return Air Filtration
  • Overhead Air Distribution w/Floor Level Return
  • 74 3/4″ Head Room
  • Patient Compartment Pass-Through Window
  • Rear Facing EVS High Back Attendant Seat w/3 Point Harness
  • Squad Bench w/Retractable Seat Belts at designated Seating Positions
  • Zico “QRMV” Bracket for Oxygen “M” Cylinder w/ Two “Ohio” Style 02 Outlets
  • SSCOR Suction Unit
  • Locking Sharps Container
  • ALS Shelving
  • Two 110V Duplex Receptacles
  • Two 12V Cigar Style Receptacles
  • Ferno “Stat Trac” Cot Fastener
  • Vertical Back Board Storage in Bulkhead behind Right Front Passenger Seat

Osage Warranty

  • Three Year / 36,000 Mile Product Conversion
  • Five-Year / 100,000 Mile (Non Pro-rated) Modular Paint
  • Six Year / 72,000 Mile Electrical System
  • Lifetime Modular Body Structure

NOTE: Click here for our Warranty Information page
